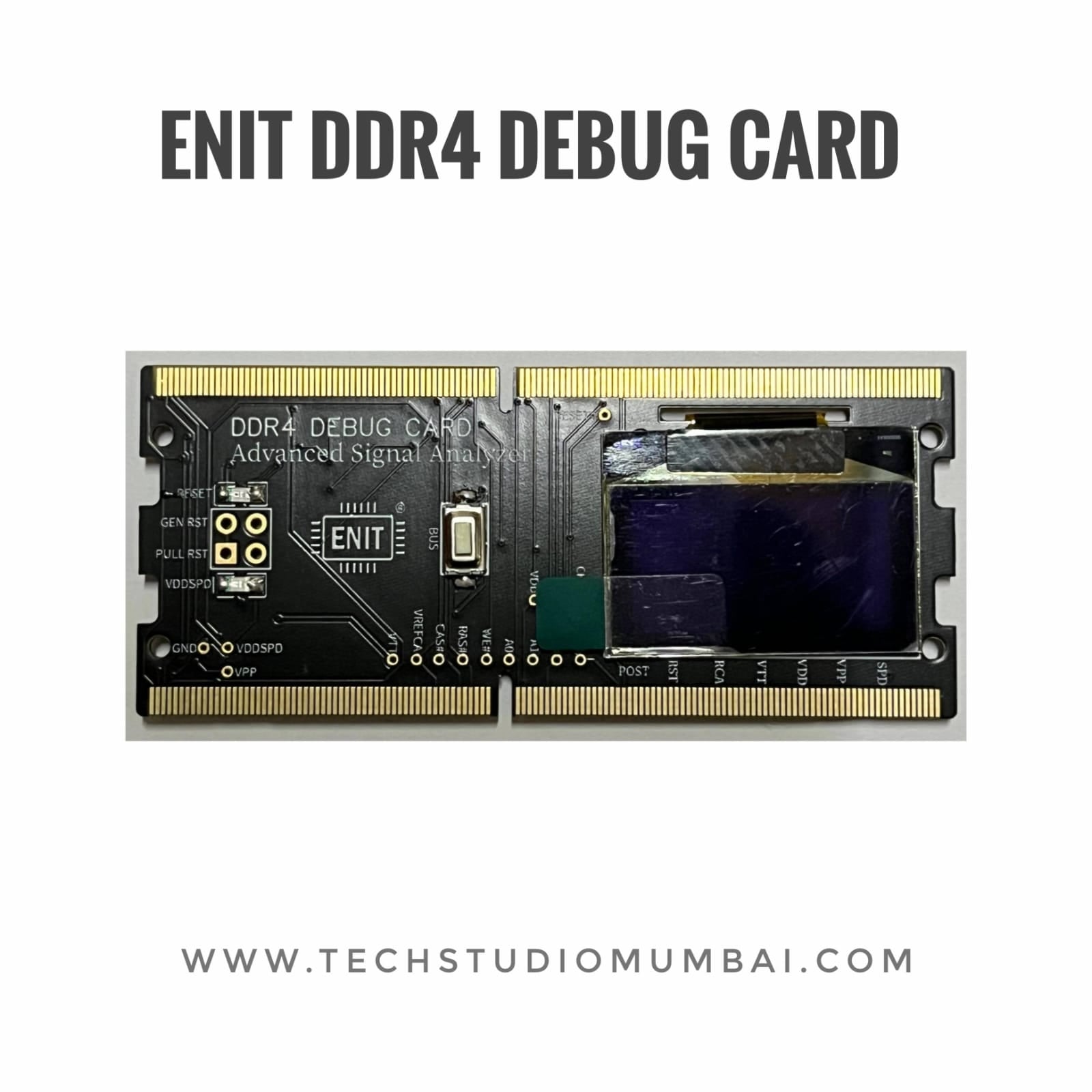

The ENIT DDR3 & DDR4 Debug Cards are advanced diagnostic tools designed to simplify motherboard repair—especially for identifying RAM-related and power delivery issues.
Key Features:
Compatible with DDR3 and DDR4 RAM slots.
Exact RAM-size design for easy slot fit—even in laptops with rear access.
LCD display provides real-time voltage and signal status.
LEDs show VD SPD voltage presence for quick checks.
Test points for signal probing using multimeter or oscilloscope.
Usage Types:
1. Field Engineers / Sellers:
Diagnose display failure quickly.
White background/characters indicate missing/low voltage.
No LED or display = motherboard RAM power failure.
No need to replace RAM repeatedly to isolate faults.
2. Chip-Level Technicians:
Access test points to analyze address/data/control signals.
Check critical voltages like VDD, VTT, VREF, VPP.
Use with tools like oscilloscope or multimeter.
Schematics/manual available for detailed repairs (via Telegram).
Display Indicators:
"FLOAT" = disconnected or pulled-down signal.
"FF" = CPU not communicating with RAM (common no-display issue).
White voltage readings = faults like slot damage, missing voltage, or short.
Important Voltages:
VD SPD (3.3V): RAM EEPROM power.
VPP (2.5V): DDR4 programming voltage.
VDD / VTT / VREF: Core and reference voltages.
Reset / RCA: System reset and RAM-CPU activity.
Installation Tips:
Always insert the card before powering on.
Press from the middle, not the LCD.
LCD should face upward.
Jumper support available for debugging reset faults.
Ideal for:
Laptop motherboard repair professionals
Chip-level repair labs
Laptop resellers and diagnostic centers
Support & Downloads:
User manual, test point guides, and schematics are available from the official Telegram channel:
